ABATA-006

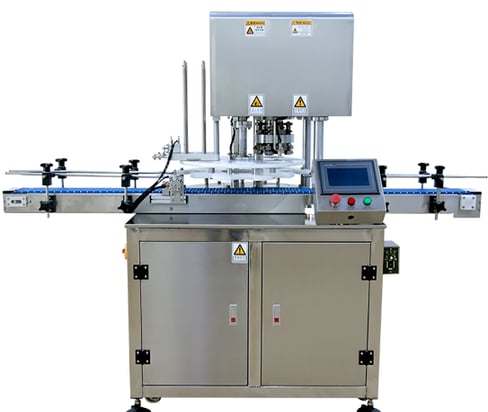

Product name：Automatic Can Seaming Machine

Model No：ABATA-006

Features：

Product Description

1. This product is mainly suitable for all kinds of round Can seaming packaging of Pet Can, ( Tin plate and aluminum can) , etc. with advanced design, reasonable structure and simple operation, it is a necessary and ideal packaging equipment for food, medicine, milk powder and chemical industry;

2. The main body of the product is made of 304 stainless steel, which is simple and beautiful, and meets the design requirements of the standard production workshop;

3. The parts of this product are processed precisely, and the production technology and process are precipitated and continuously improved by our long-time customer experience. The key parts adopt unique design, with high strength, low noise and good sealing performance;

This product is in line with the national standards, food standards, enterprise standards, and is allowed to leave the factory after strict inspection and testing.

4. Using PLC servo control system and touch screen interface operation, it is very simple and clear to use.

Main parameters of the machines

Data sheets Details:

• Model detail : ABATA-006 Automatic can seaming machine

• Max seaming speed : 30-40cans/min

• Can range : H 40-250mm(Adjustable)

• Diameter : 35-100mm(customized)

• Air required : 0.8 Mpa

• Power : 1.7kw

• Voltage : AC22V 50/60Hz (single phase)

• Working Temperature/Humidity : 0-45℃,5-85%

• Oversize(L*W*H) : 1700mm*800mm*1350mm

• Packing size : 1510mm*1010mm*1560mm

• Net weight : 310 KG
